FREQUENCY: | 1.26 GHz w/ 50 MHz BW |
|
ISOLATION (MIN.): | 20.0 dB |
|
INS. LOSS (MAX.): | 0.5 dB |
|
VSWR (MAX): | 1.25:1 |
|
SIZE: | .75" x .75" x .25" |
|
OPERATING TEMPERATURE: | -20°C to +70°C |
|
TERMINATION: |

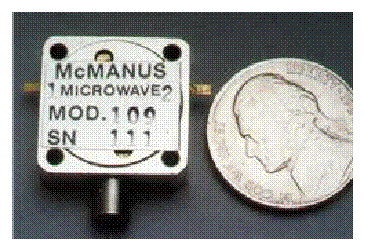

EXTERNAL Circulator/Isolator |
Note:
If you are intrested in purchasing an existing model, upon ordering, you will be issued a new model number with Serial numbers starting at 101.
